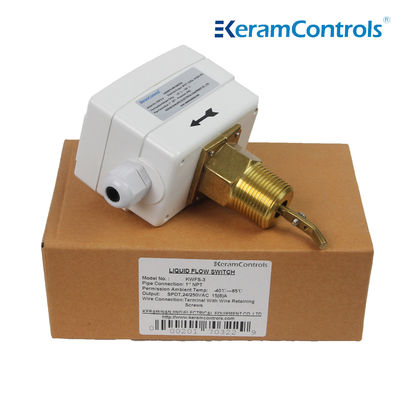

Product Details:
|
| Flow Rate Setting Adjustment: | Internal Screw | Parts Material In Contact With Fluid: | Brass |
|---|---|---|---|
| Cable Entry: | M18 Fitting | ||
| Highlight: | 90%RH Liquid Flow Switch,M18 Fitting Liquid Flow Switch,M18 Water Flow Sensor Switch |
||

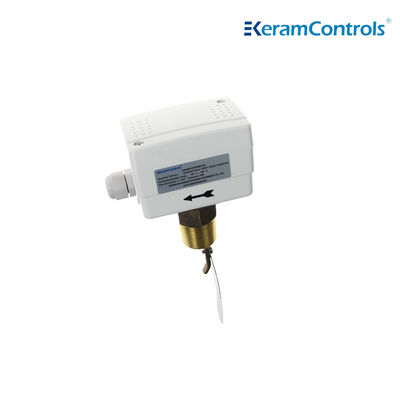

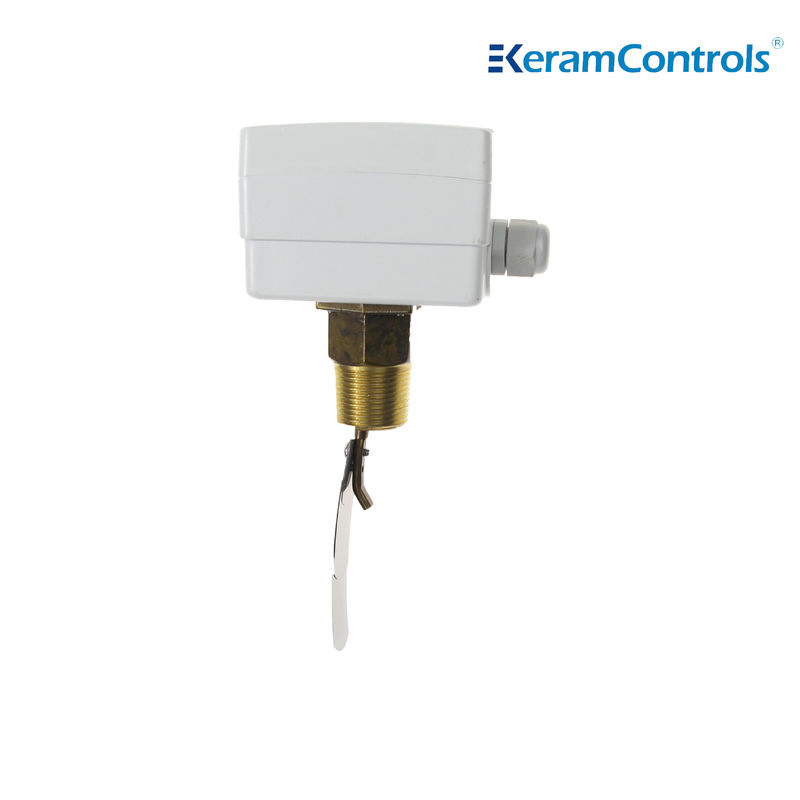

The mechanical part of the flapper flow switch is safely isolated from the electronic part. The product does not contain bellows that are easy to cause failures, and electrical components do not directly contact metal components with large temperature differences. There is no problem of electrical components producing condensed water and causing corrosion. It has a variety of types for customers to choose to adapt to different applications.
KWFS series liquid flow switch has SPDT output, excellent performance, high precision and reliability, can be installed in water pipes and non-corrosive liquids to copper, and is easy to install, the flow value control is adjustable, and the repeated action point is stable, so that the equipment can be accurately Control media flow.
Control and monitor liquid flow of boilers, pumps, etc., of heating, cooling, and air conditioning equipment.
Features
● Flow control of water and normal media
● Renovated SPDT micro switch ensures the reliable switch function
●15(8A)250VAC switch rating
● IP65, class I enclosure
● Set point adjustable
● Stainless steel paddle
●Brass material
● Max. liquid temp 120℃
● Max working pressure 20Ba
| Type of operation | On/Off,single-stage,micro switch |
| Output | SPDT 15(8A) 24/250VAC |
| Flow rates | See flow rate table |
| Flow rate setting adjustment | Internal screw |
| Sensing element | Paddle |
| Liquid applications | Hot, chilled, well, pool and sea water,Brine or ethylene glycol |
| Parts material in contact with fluid | Brass |
| Paddle material | Stainless steel |
| Liquid temperature | -20℃~120℃ |
| Permissible ambient temperature | -40℃~85℃ |
| Permissible ambient humidity | 10…90% RH, non-condensing |
| Cable entry | M18 Fitting |
| Housing | Fire Resistance ABS or PC |
| Protection | IP65 |
| Color | White |
| Weight | 1.0Kg |
Types of Model
| Model | Connection |
| KWFS-1 | 1/2" -14 NPT |
| KWFS-2 | 3/4" -14 NPT |
| KWFS-3 | 1" -11½ NPT |
| Line Pipe Size(in.) | 1 | 1-¼ | 1-½ | 2 | 2-¼ | 3 | 4 | 4Z | 5 | 5Z | 6 | 6Z | 8 | 8Z | |
| Min.flow | Flow Increase ①&②Connected |
4.2 (1.0) |
5.8 (1.3) |
7.5 (1.7) |
13.7 (3.1) |
17.6 (4.0) |
27.5 (6.2) |
64.7 (14.7) |
35.2 (8.0) |
125 (28.4) |
57.01 (12.9) |
190.0 (43.1) |
74.0 (16.8) |
374.7 (85.1) |
204.7 (46.5) |
| Flow Decrease ①&③Connected |
2.5 (0.6) |
3.7 (0.8) |
5.0 (1.1) |
9.7 (2.2) |
11.9 (2.7) |
19 (4.3) |
50.1 (11.4) |
26.9 (6.1) |
101.1 (22.9) |
41.0 (9.3) |
158.0 (35.9) |
54.0 (12.3) |
319.7 (72.6) |
170.0 (3806) |
|
| Max.flow | Flow Increase ①&②Connected |
9.2 (2.1) |
13.3 (3.0) |
17.6 (4.0) |
26.9 (6.1) |
30.8 (7.0) |
50.2 (11.4) |
127.6 (29.0) |
81.0 (18.4) |
245.0 (55.6) |
118.0 (26.8) |
374.7 (85.1) |
144.0 (32.7) |
759.5 (172.5) |
415.0 (94.2) |
| Flow Decrease ①&③Connected |
8.1 (2.0) |
12.5 (2.8) |
16.3 (3.7) |
25.1 (5.7) |
28.6 (6.5) |
47.1 (10.7) |
122.0 (27.7) |
76.2 (17.3) |
234.7 (53.3) |
111.0 (25.2) |
359.7 (81.7) |
134.7 (30.6) |
729.6 (165.7) |
400.6 (90.8) |
|
Note:
①For flow rates with suffix "Z", the 6 inch paddle must be installed.
②The flow rate unit of the above table is GPM (m /h)
The flow switch can be installed in every position far from elbows or throttlings, with arrow on flow direction. If pipe is vertical, recalibrate range to balance paddle weight. If the device is downwards mounted, take care to slags and apply it in a straight pipe that is far from filters,valves,etc.,with length at least 5 times the diameter of pipe upstream and downstream the unit.
Note:
The flow switch is factory calibrated at its minimum sensitivity.To increase the set valve,turn the adjustment screw clockwise.The cut-out valve must be ≥the minimum flow necessary to guarantee the protection of the plant.
| Install Paddle | |
| Pipe | NO. |
| 1" | 1 |
| 11/4" | 1 |
| 11/2" | 1 |
| 2" | 1,2 |
| 21/2" | 1,2 |
| 3" | 1,2,3 |
| 4" | 1,2,3 |
| 4"Z | 1,2,3,4 |
| 5" | 1,2,3 |
| 5"Z | 1,2,3,4 |
| 6" | 1,2,3 |
| 6"Z | 1,2,3,4 |
| 8" | 1,2,3 |
| 8"Z | 1,2,3,4 |
